| Product Name |

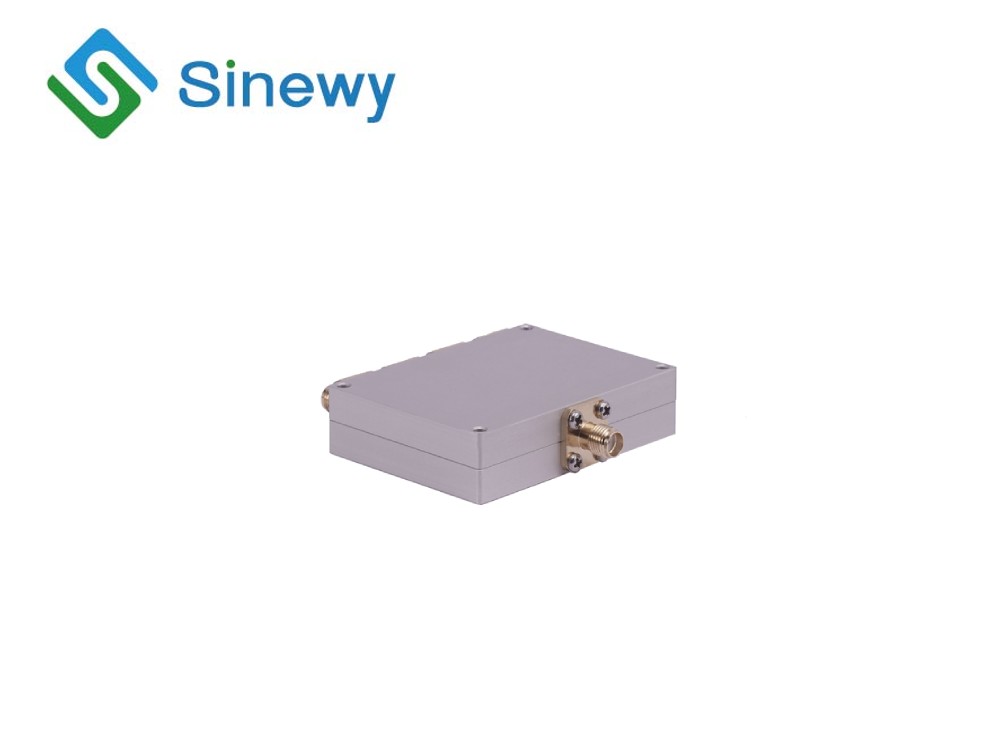

Power Splitter
|
||
| Frequency Range (MHz) |
698-3800MHz
|
||
| Forconnecting…antennas |
2 Way
|
3 Way
|

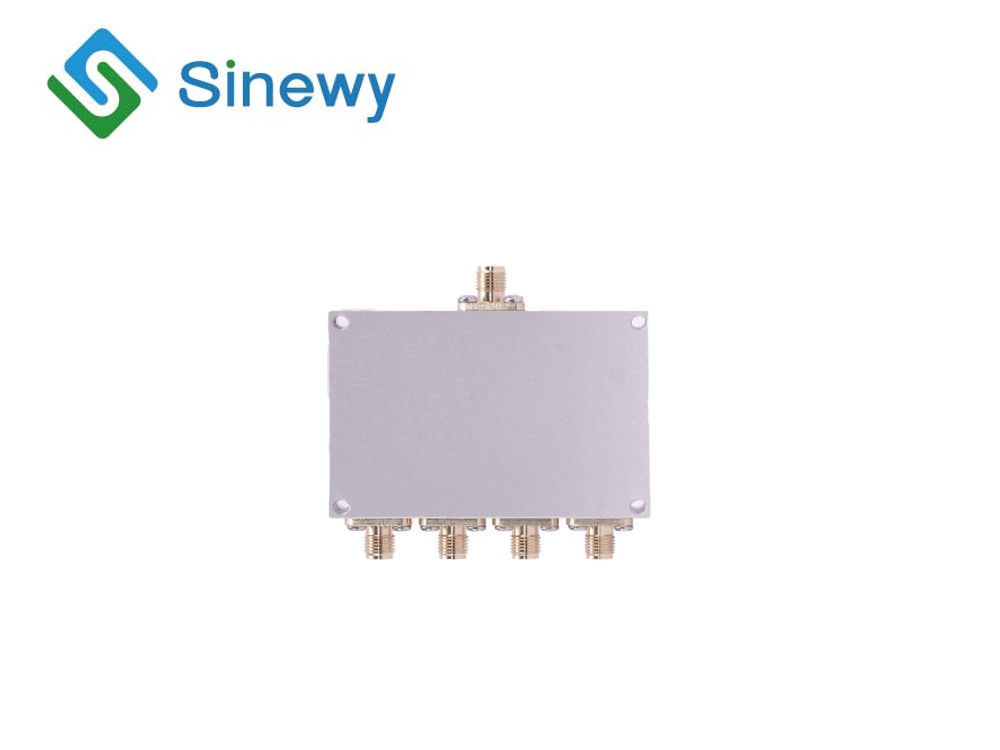

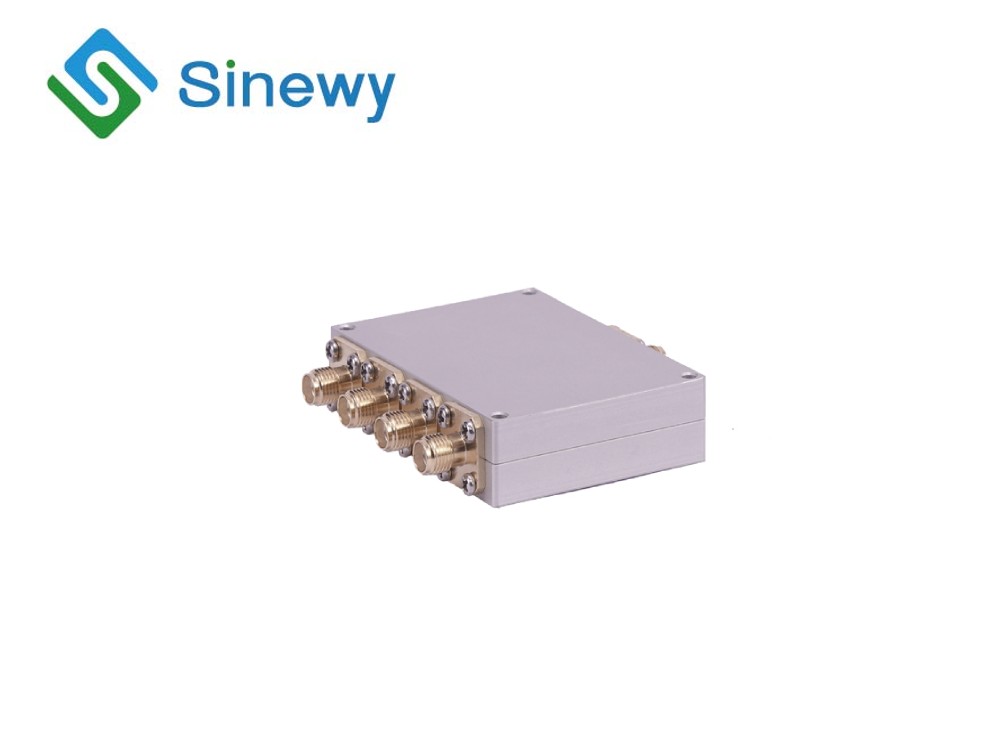

4 Way
|
| Distribution Loss(dB) |
3.0
|
4.8
|
6.0
|
| Insertion Loss(dB) |
≤0.8
|
≤1.2
|
≤1.0
|
| Isolation(dB) |
≥22
|
||
| Return Loss(dB) |
≥18
|
||
| VSWR(dB) |
≤ 1.3
|
||
| Maximum Input (W) |
50 W
|
||
| Operating temperature(℃) |
-25℃ to +70℃
|
||
| Relative humidity(℃) |
0 ~ 95 %
|
||
| Impedance（Ω） |
50 Ω
|
||
| Size（mm） |

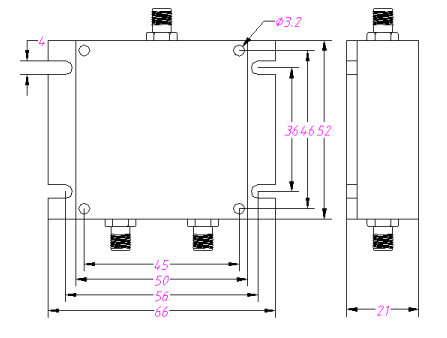

66*52*21 mm
|

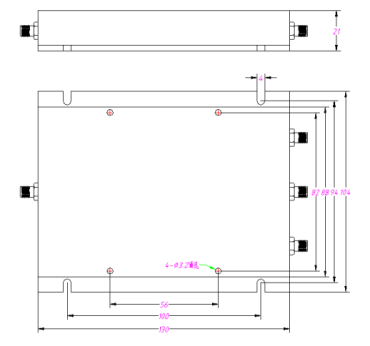

130*104*21 mm
|

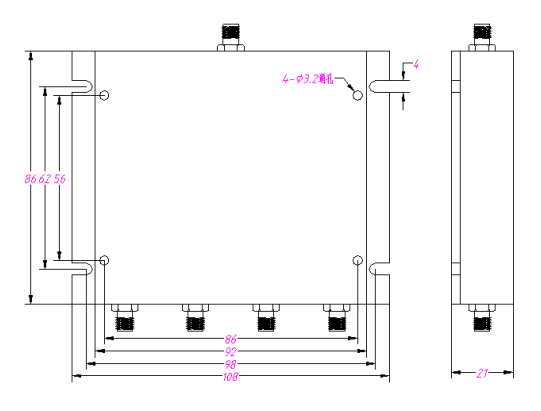

108*86*21 mm
|
| Weight(g) |
180 g
|
260 g
|
260g
|
| Connector Type |
SMA Female
|
||
| Ingress protection |
IP65
|
||
| Color |
Grey(ML440c)/Black
|
||
| ROHS |
Meet
|
||
