| Product Name |

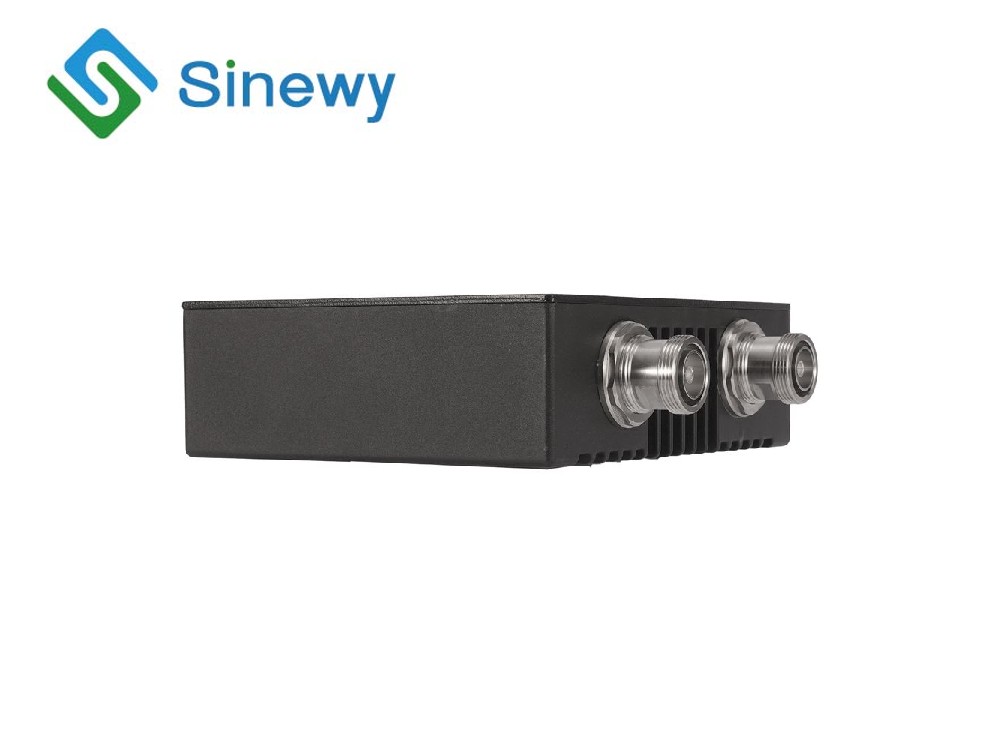

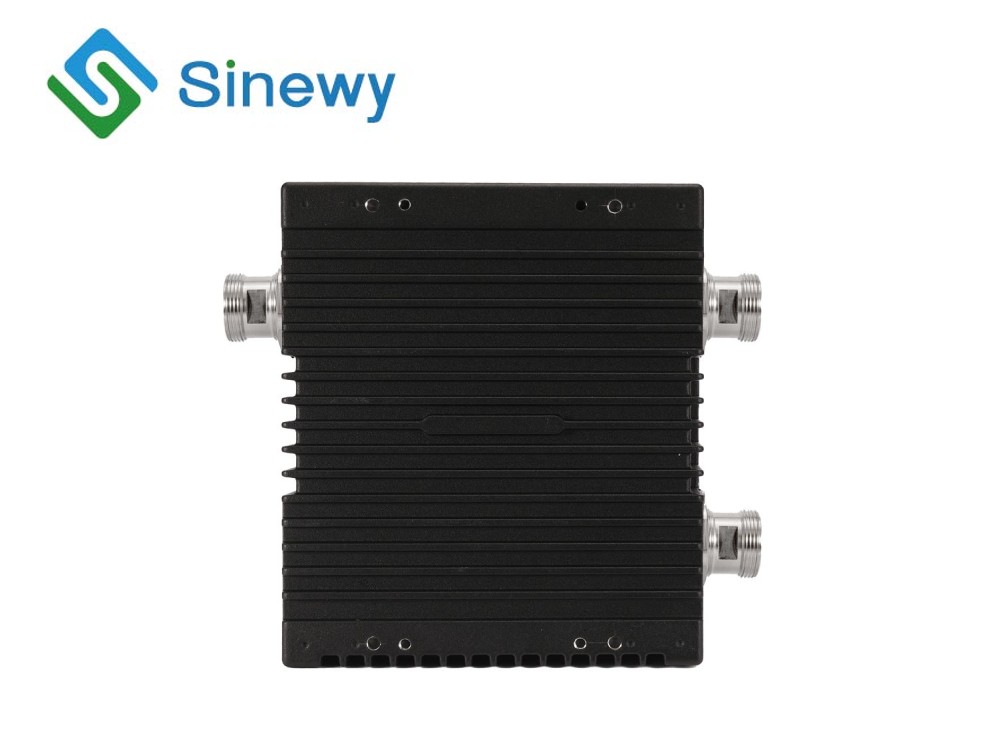

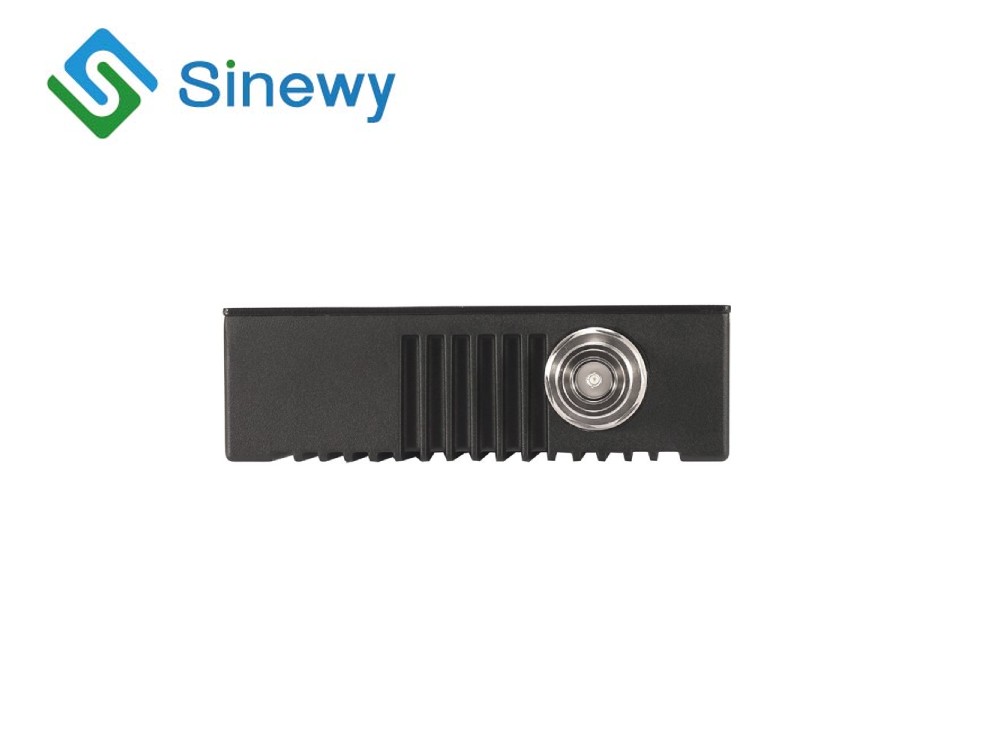

2x1 Hybrid
|
| Frequency Range (MHz) |
698-3800MHz
|
| Insertion Loss(dB) |
3±0.6 dB
|
| Isolation(dB) |
≥ 25 dB
|
| Return Loss(dB) |
≥19
|
| VSWR(dB) |
≤ 1.25
|
| PIM3(dBm) |
≤ -155dBc (with 2 x 43dBm)
|
| Maximum Input (W) |
300 W/500W
|
| Operating temperature(℃) |
-25℃ to +70℃
|
| Relative humidity(℃) |
0 ~ 95 %
|
| Impedance（Ω） |
50 Ω
|

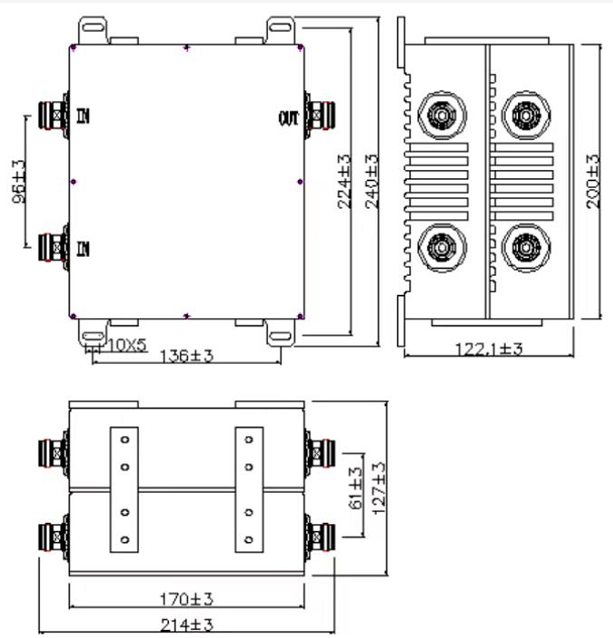

| Size（mm） |
240x 214 x 122 mm
|
| Weight(g) |
7kg
|
| Connector Type |
N Female /4.3-10 Female/DIN Female
|
| Ingress protection |
IP67
|
| Color |
Grey(ML440c)/Black
|
| ROHS |
Meet
|
