Product Name
|

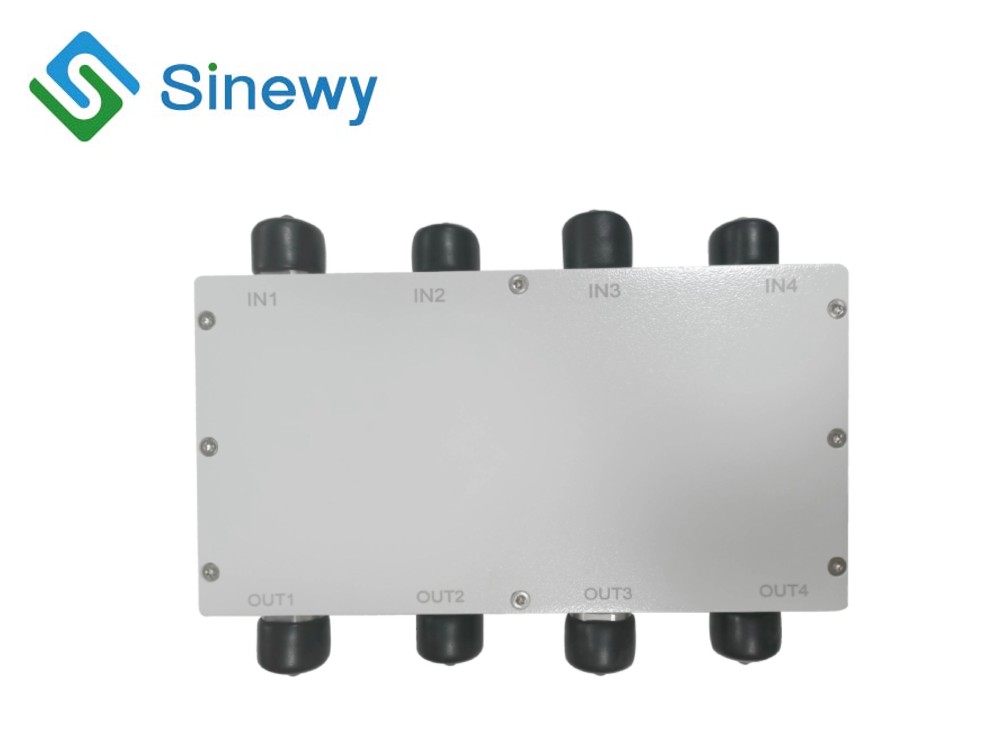

4x4 Hybrid
|
|
FrequencyRange (MHz)
|
698-3800MHz
|
|
Insertion Loss(dB)
|
6±1.2 dB
|
|
Isolation(dB)
|
≥ 25 dB
|
|
Return Loss(dB)
|
|
|
VSWR(dB)
|
< 1.25@698-2700
|
|
< 1.3@2700-3800
|
|
|
PIM3(dBm)
|
≤ -160 dBc (with 2 x 43dBm)
|
|
Maximum Input (W)
|
300W/ 500 W
|
|
Operating temperature(℃)
|
-25℃ to +70℃
|
|
Relative humidity(℃)
|
0 ~ 95 %
|
|
Impedance（Ω）
|
50 Ω
|
|

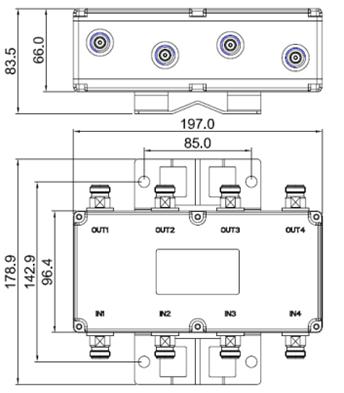

Size（mm）
|
197x 96.4x 66 mm
|
|
Weight(g)
|
2300g
|
|
Connector Type
|
4.3-10 Female、N Female、7-16 Female
|
|
Ingress protection
|
IP67
|
|
Color
|
Grey
|
