| Product Name |

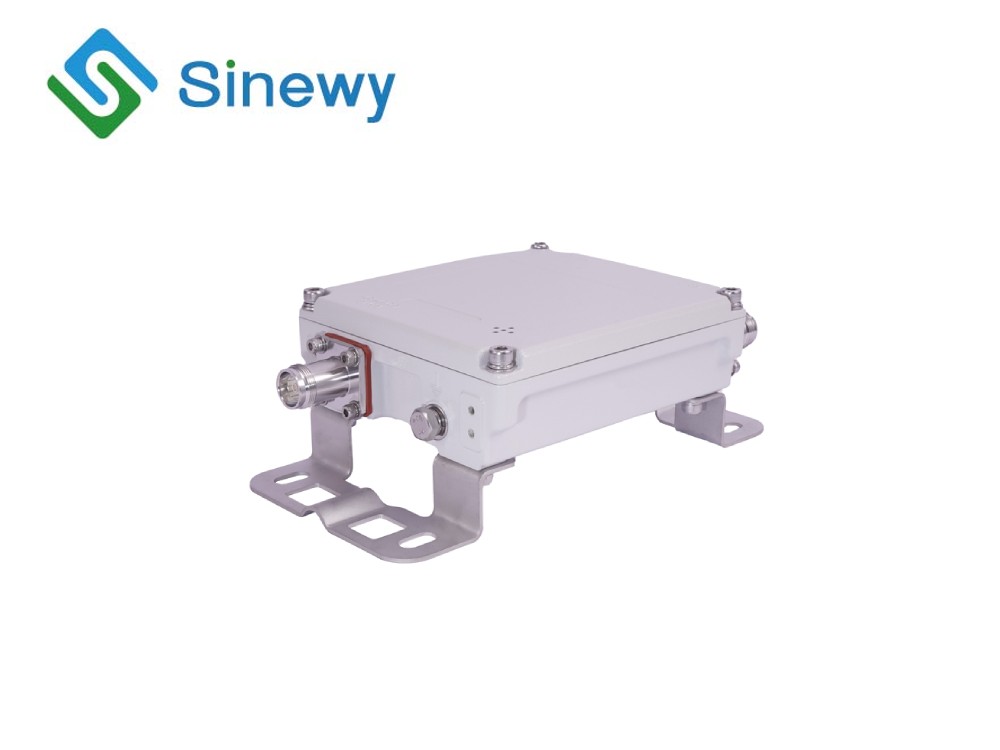

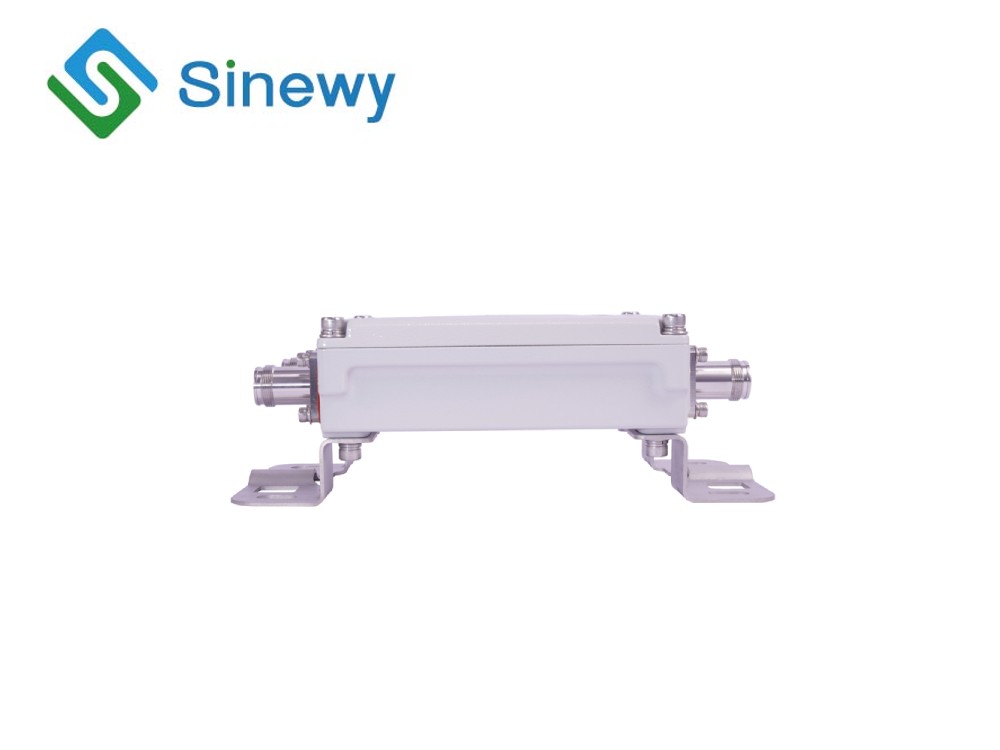

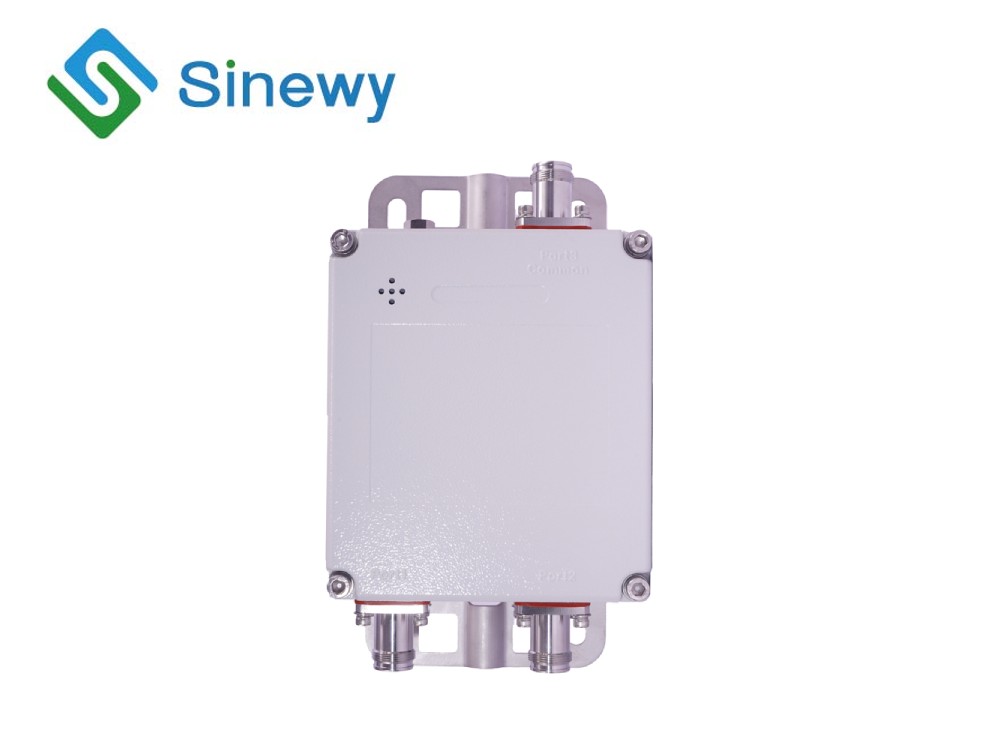

Dual-Band Combiner
|
|
| Frequency Range (MHz) |
1710-1880
|
1920-2170
|
| Insertion Loss(dB) |
< 0.3
|
|
| Isolation(dB) |
>50
|
|
| Return Loss(dB) |
≥19
|
|
| VSWR(dB) |
≤ 1.25
|
|
| PIM(dBm) |
≤ -150dBc (with 2 x 43dBm)
|
|
| Maximum Input (W) |
300W
|
|
| Operating temperature(℃) |
-40℃ to +65℃
|
|
| Relative humidity(℃) |
0 ~ 95 %
|
|
| Impedance（Ω） |
50 Ω
|
|

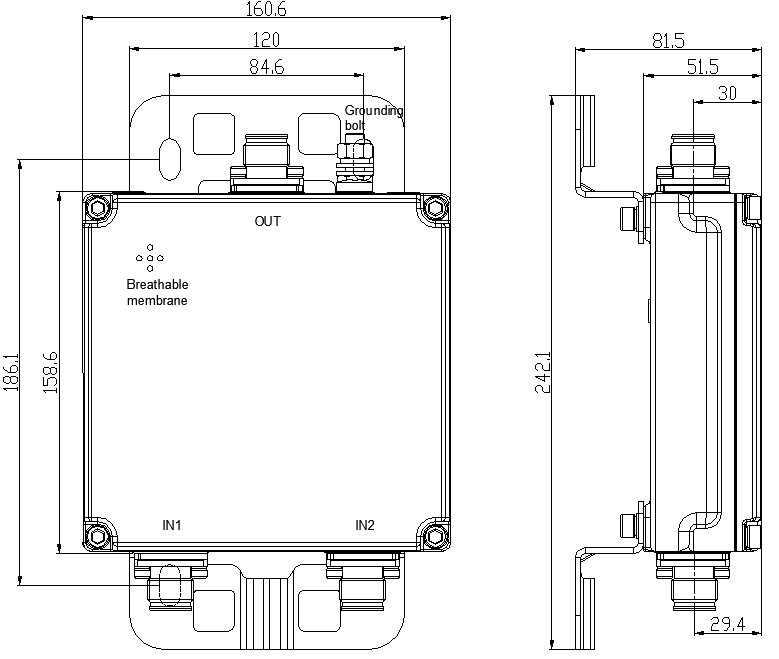

| Size（mm） |
160.6x 158.6x 48.5 mm
|
|
| Weight(g) |
1300g
|
|
| Lightning Protection |
3kA; 10/350 μs pulse
|
|
| Connector Type |
4.3-10 Female、DIN Female
|
|
| Ingress protection |
IP67
|
|
| Color |
Grey(ML440c)
|
|
| ROHS |
Satisfy
|
|
