Product Name
|

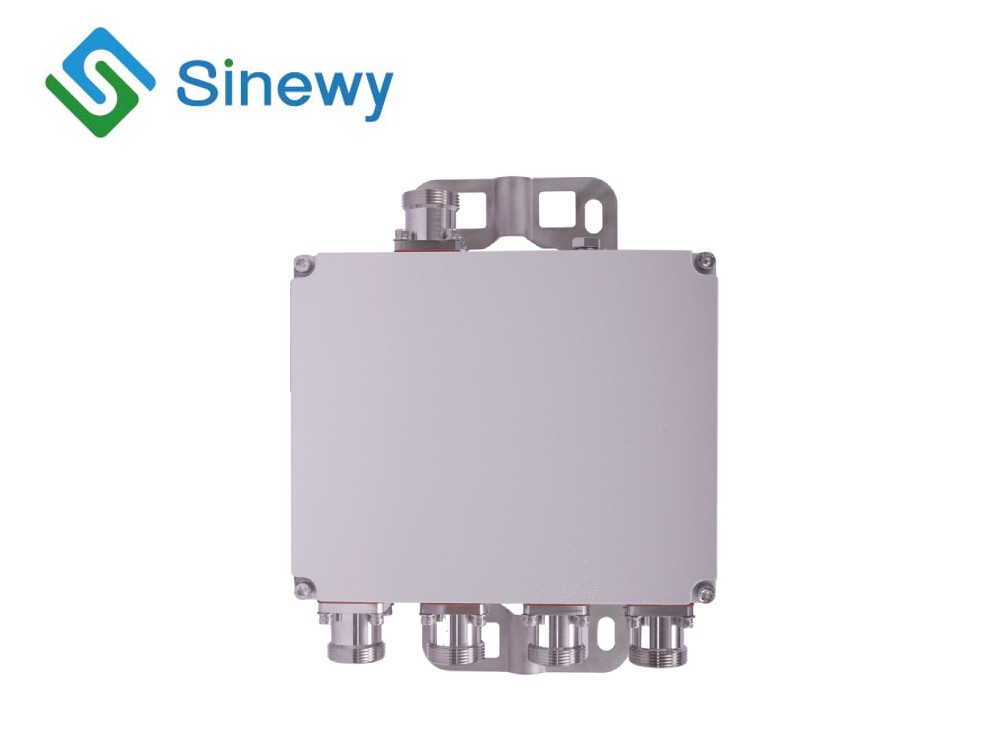

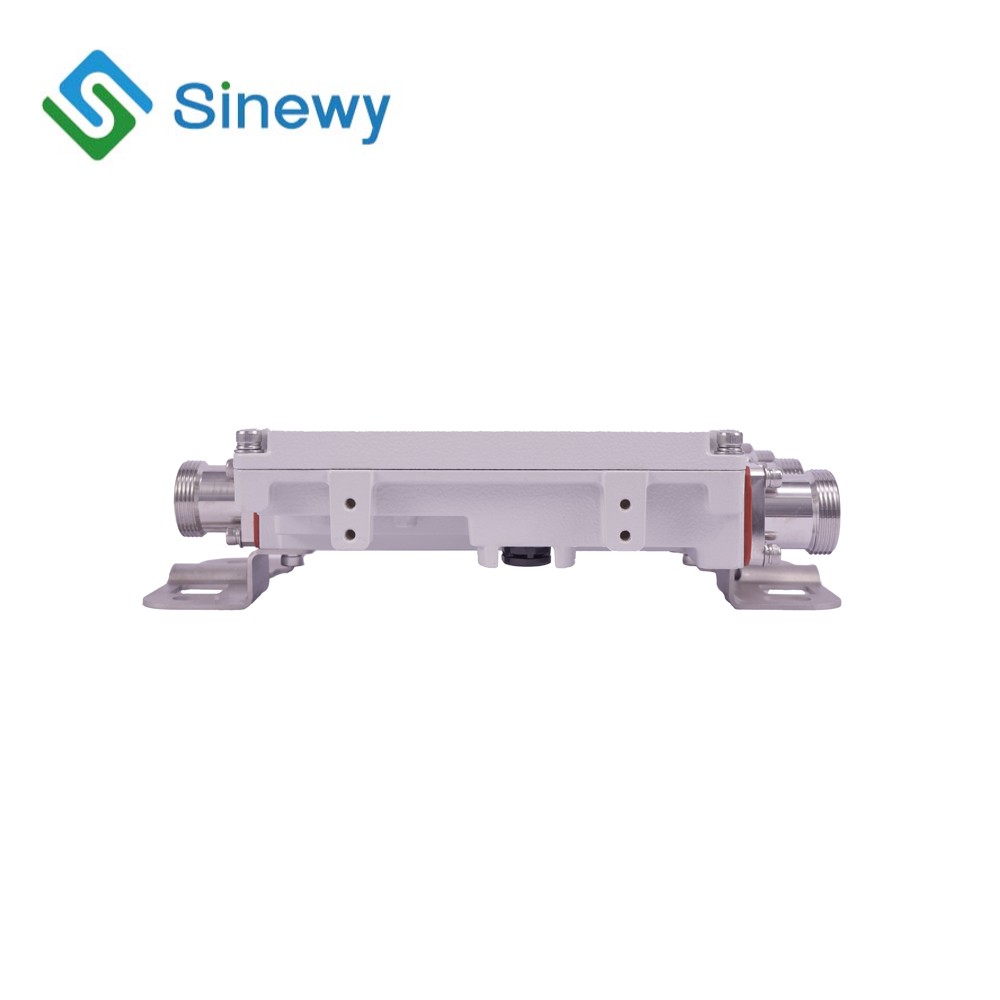

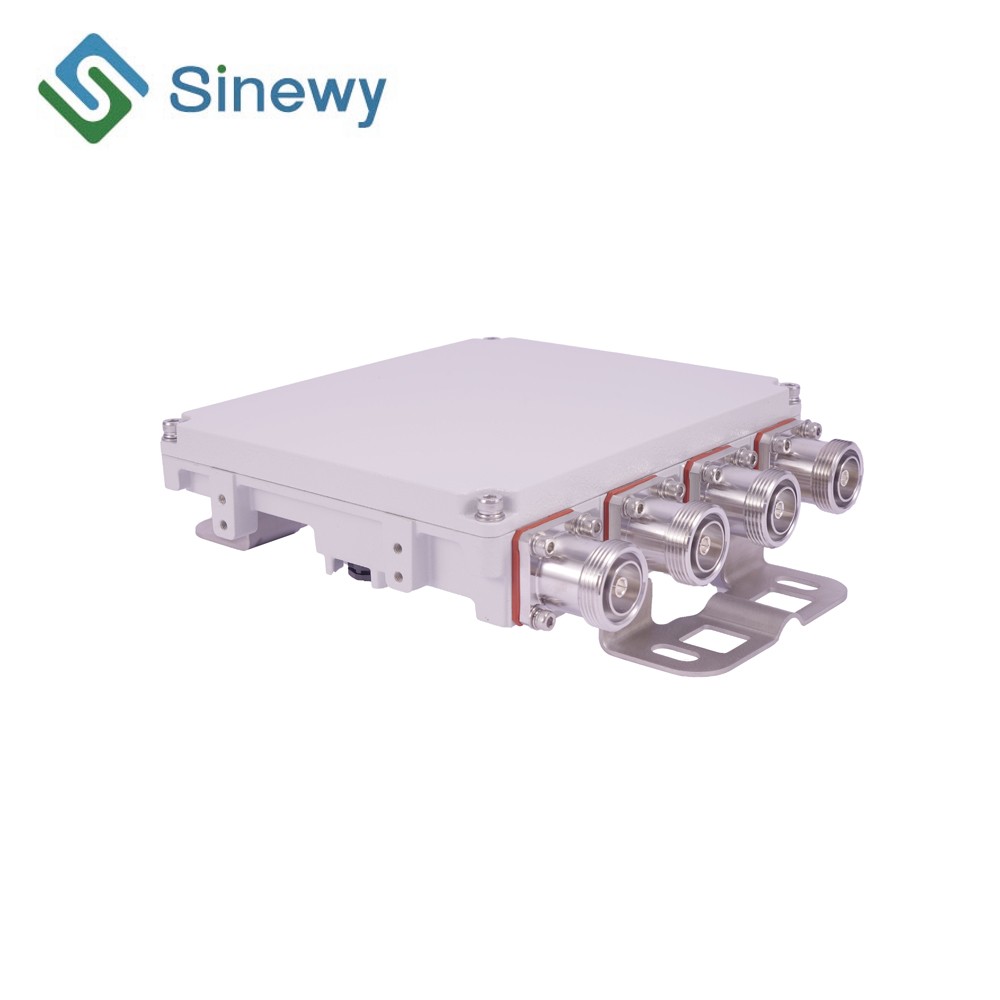

Quad-Band Combiner
|
|||
|
Frequency Range (MHz)
|
698-960
|
1710-2170
|
2300-2690
|
3300-4200
|
|
Insertion Loss(dB)
|
< 0.4
|
|||
|
Isolation(dB)
|
>50
|
|||
|
Return Loss(dB)
|
≥19
|
|||
|
VSWR(dB)
|
≤ 1.25
|
|||
|
PIM(dBm)
|
≤ -155dBc (with 2 x 43dBm)
|
|||
|
Maximum Input (W)
|
300W
|
|||
|
Operating temperature(℃)
|
-40℃ to +65℃
|
|||
|
Relative humidity(℃)
|
0 ~ 95 %
|
|||
|
Impedance（Ω）
|
50 Ω
|
|||
|

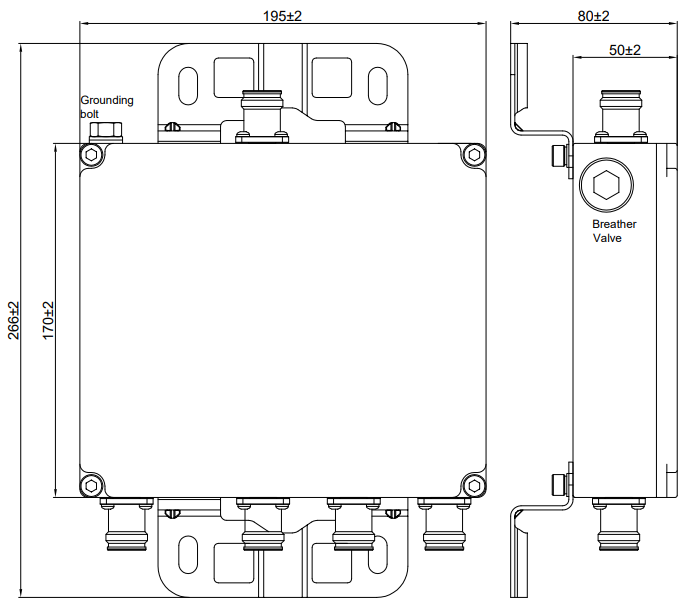

Size（mm）
|
195 x 170 x 50 mm
|
|||
|
Weight(g)
|
3000g
|
|||
|
Lightning Protection
|
3kA; 10/350 μs pulse
|
|||
|
Connector Type
|
N Female 、4.3-10 Female、DIN Female
|
|||
|
Ingress protection
|
IP67
|
|||
|
Color
|
Grey(ML440c)
|
|||
|
ROHS
|
Satisfy
|
|||
