| Product Name |
Dual-Band Combiner
|
|
| FrequencyRange (MHz) |
1710-1830
|
1885-2025
|
| Insertion Loss(dB) |
< 0.3, (typ. 0.3 )
|
|
| Isolation(dB) |
>30
|
|
| Return Loss(dB) |
≥19
|
|
| VSWR(dB) |
≤ 1.25
|
|
| PIM3(dBm) |
≤ -153 dBc (with 2 x 43dBm)
|
|
| Maximum Input (W) |
50 W
|
|
| Operating temperature(℃) |
-40℃ to +65℃
|
|
| Relative humidity(℃) |
0 ~ 95 %
|
|
| Impedance（Ω） |
50 Ω
|
|

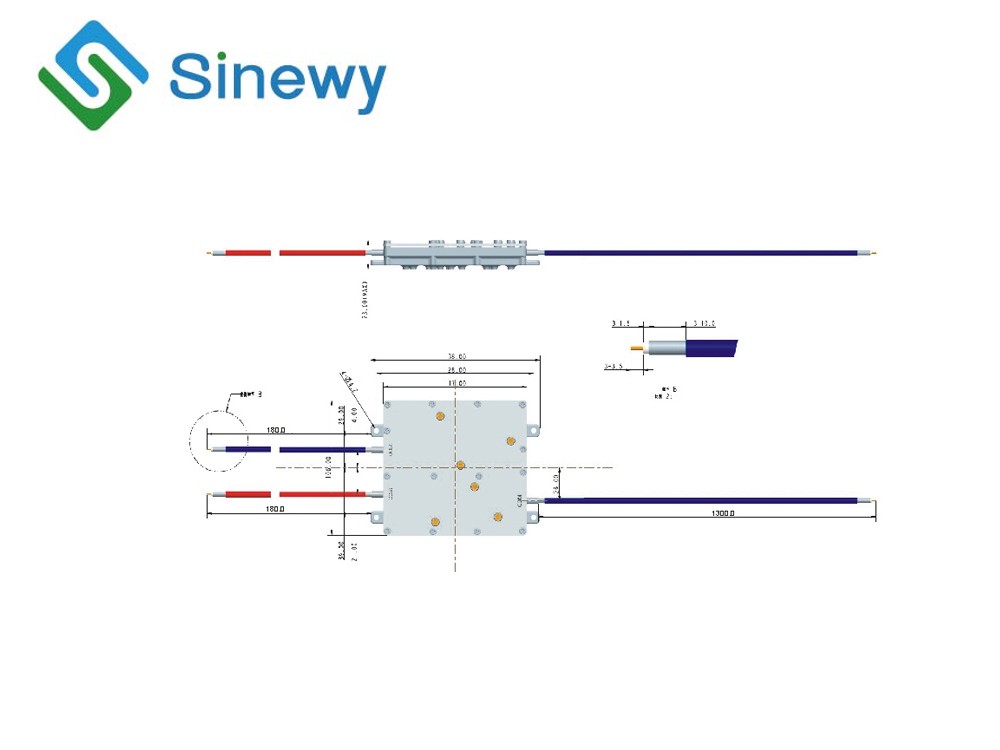

| Size（mm） |
117x 106x 23 mm
|
|
| Weight(g) |
320g
|
|
| Connector Type |
141FEP (50Ω) cable
|
|
| Ingress protection |
\
|
|
| Color |
All silver-plated (silver)
|
|
