Product Name
|

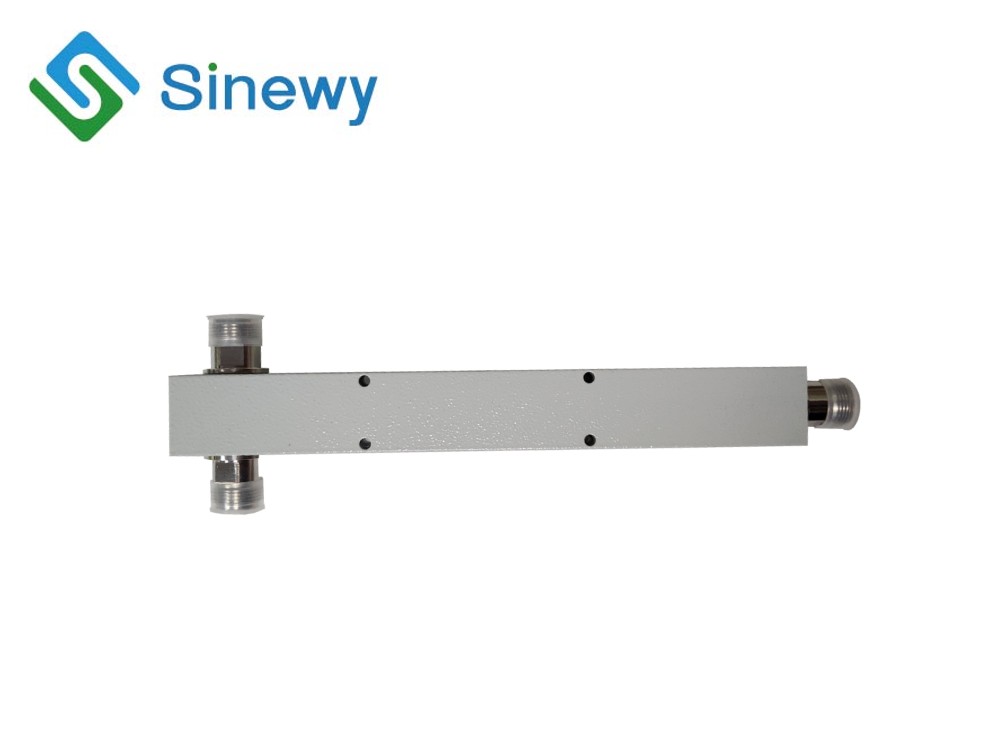

Power Splitter
|
||
|
FrequencyRange (MHz)
|
555-6000MHz
|
||
|
Forconnecting…antennas
|
2 Way
|
3 Way
|
4 Way
|
|
Distribution Loss(dB)
|
3
|
4.8
|
6
|
|
Insertion Loss(dB)
|
≤0.3
|
≤0.4
|
≤0.5
|
|
Isolation(dB)
|
/
|
||
|
Return Loss(dB)
|
≥18
|
||
|
VSWR(dB)
|
≤ 1.3
|
||
|
PIM3(dBm)
|
≤ -160 dBc (with 2 x 43dBm)
|
||
|
Maximum Input (W)
|
300 W
|
||
|
Operating temperature(℃)
|
-25℃ to +70℃
|
||
|
Relative humidity(℃)
|
0 ~ 95 %
|
||
|
Impedance（Ω）
|
50 Ω
|
||
|
Size（mm）
|
198 x 25x 25 mm
|
215 x 25x 25 mm
|
215 x 25x 25 mm
|
|
Weight(g)
|
450 g
|
510 g
|
550 g
|
|
Connector Type
|
N Female /4.3-10 Female/DIN Female
|
||
|
Ingress protection
|
IP65/IP67
|
||
|
Color
|
Grey(ML440c)/Black
|
||
|
ROHS
|
Meet
|
||
