Product Name
|

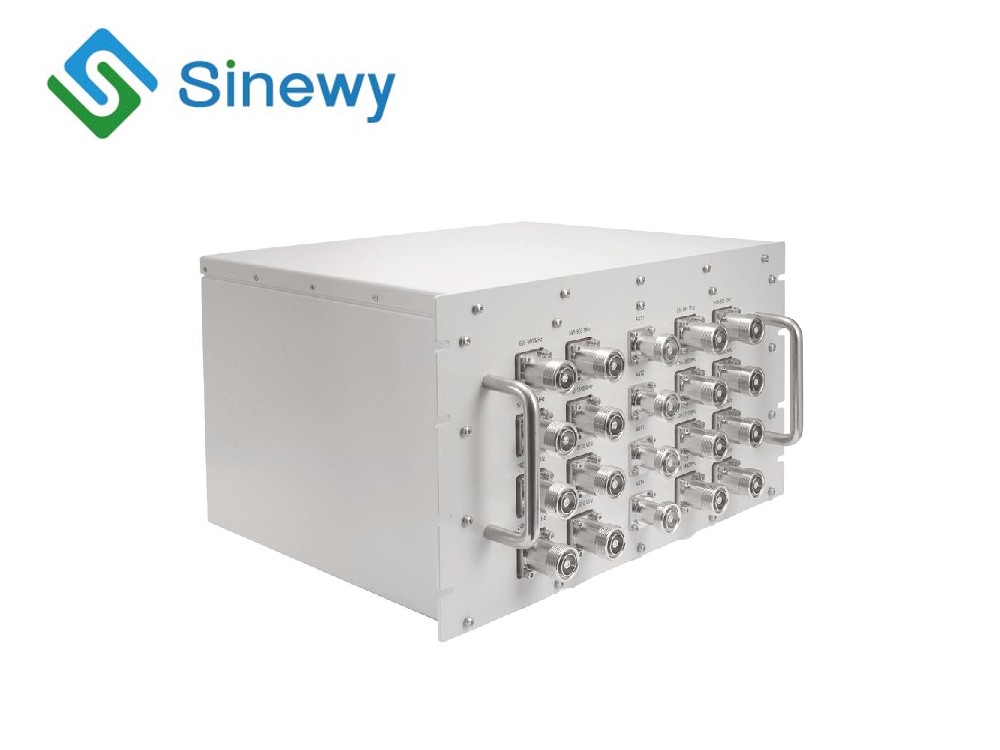

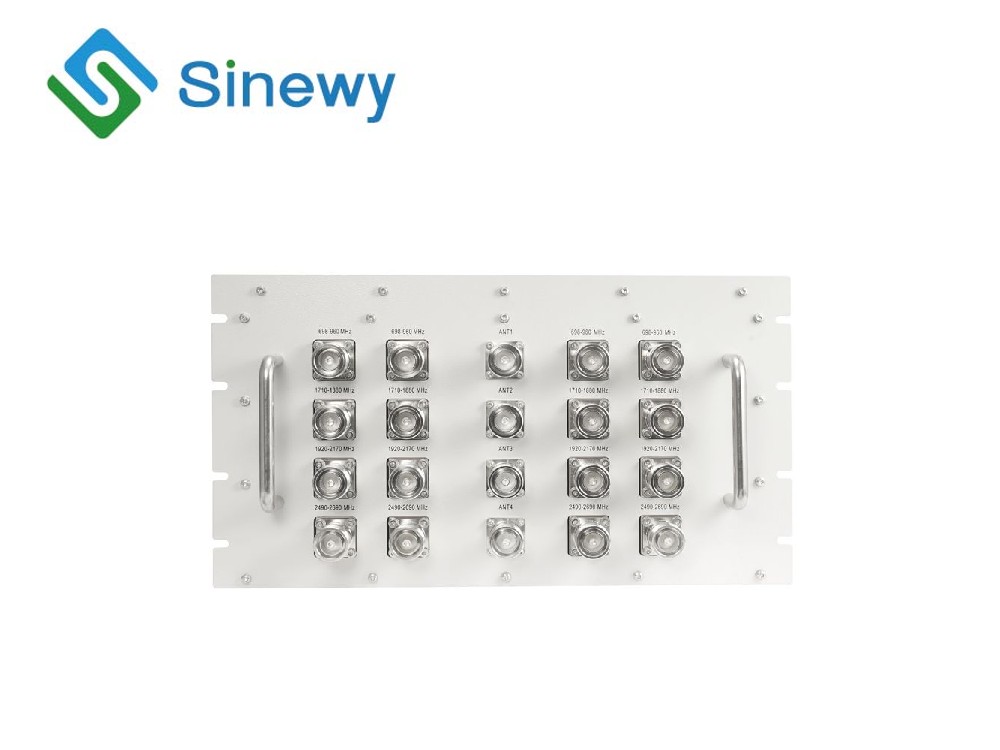

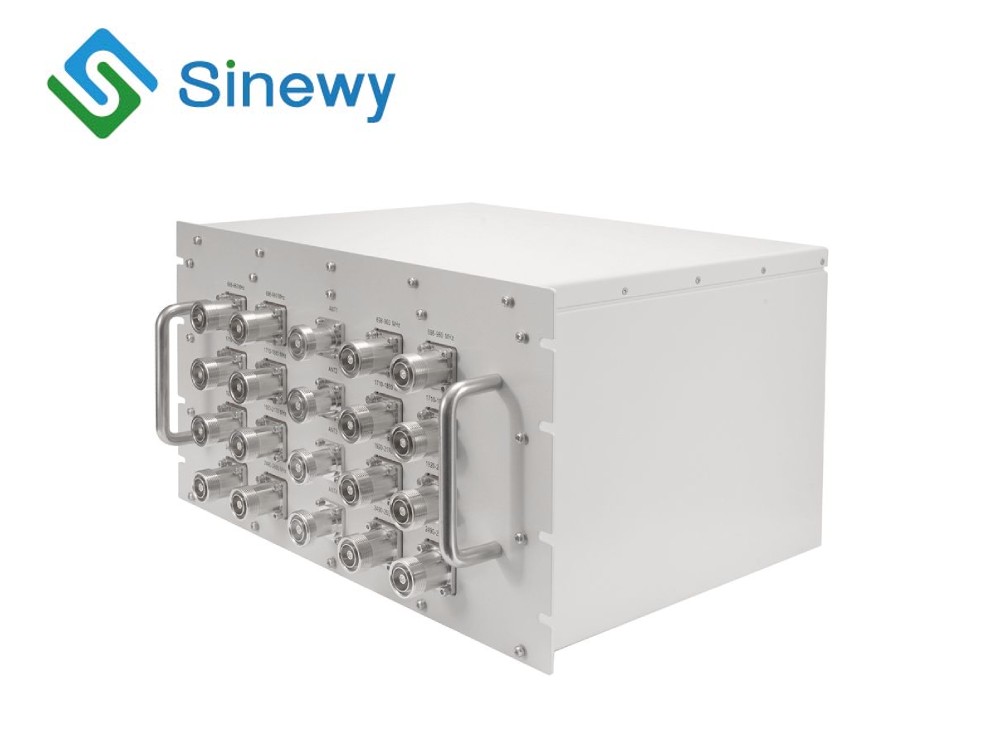

16 Input Ports 4 Out Ports POI
|
||||
|
FrequencyRange (MHz)
|
698-960MHz
|
||||
|
1710-1880MHz
|
|||||
|
1920-2170MHz
|
|||||
|
2490-2690MHz
|
|||||
|
Input Ports
|
ANT
|
698-960
|
1710-1880
|
1920-2170
|
2490-2690
|
|
4
|
4
|
4
|
4
|
4
|
|
|
Out band Isolation(dB)
|
≥50
|
||||
|
Same band Isolation(dB)
|
≥20
|
||||
|
Insertion Loss(dB)
|
≤ 8.0
|
||||
|
VSWR(dB)
|
≤1.3
|
||||
|
PIM(dBc)
|
≤ -155 dBc (with 2 x 43dBm)
|
||||
|
Maximum Input (W)
|
100 W
|
||||
|
Operating temperature(℃)
|
-40℃ to +60℃
|
||||
|
Relative humidity(℃)
|
0 ~ 95 %
|
||||
|
Impedance（Ω）
|
50 Ω
|
||||
|

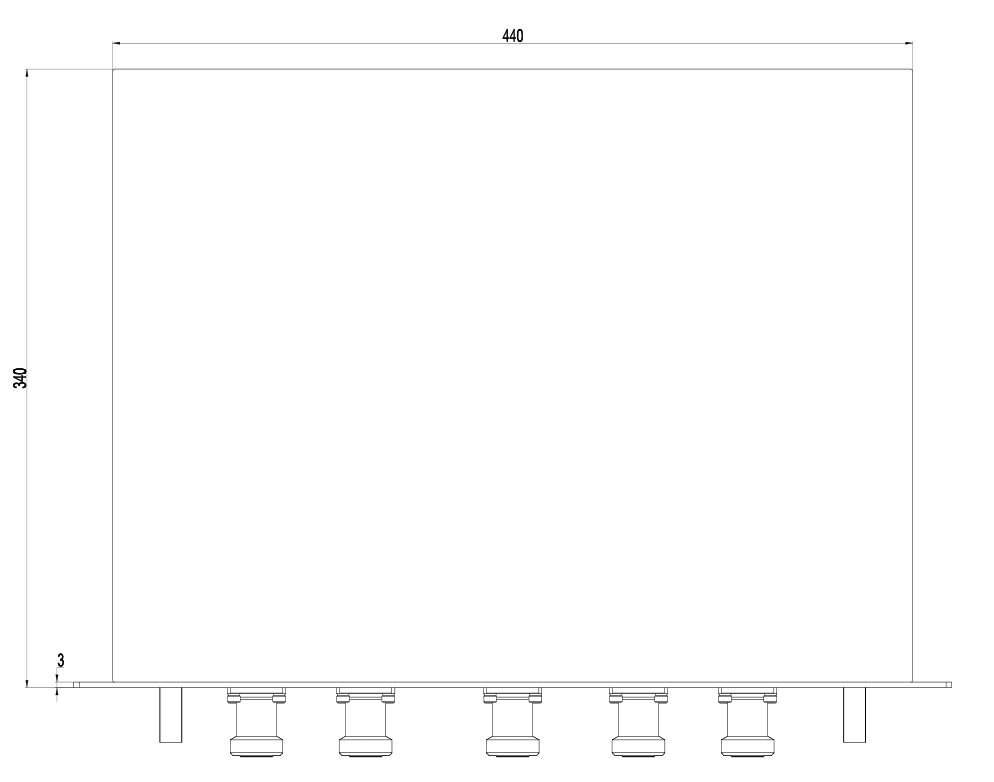

Size（mm）
|
265.9*482.6*340mm
|
||||
|
Connector Type
|
DIN-Female
|
||||
|
Ingress protection
|
IP65
|
||||
|
Color
|
Grey
|
||||
